Single products

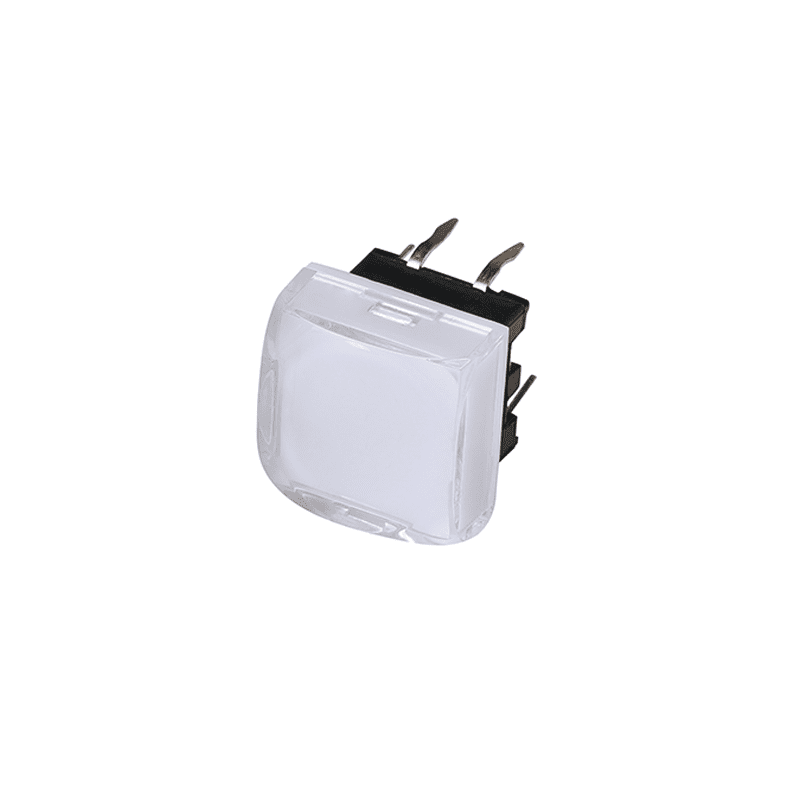

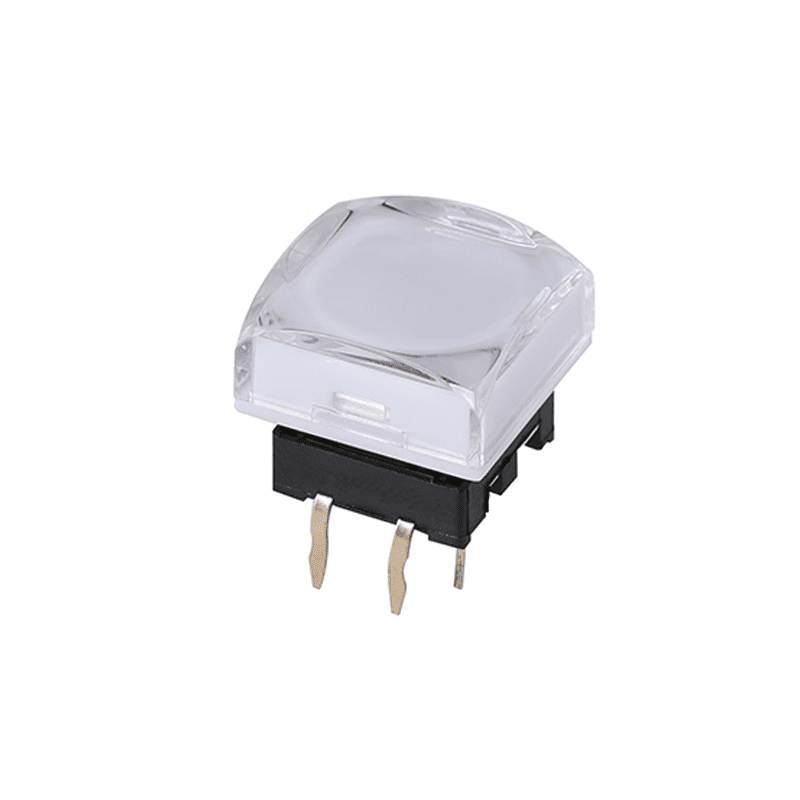

TL12-SGS5T-R1G1

Cap size

15*15mm

Cap Color

Transparent (There are also transparent black options, can be added film.)

Button height

12.7mm

LED Color

Green & RED Bi-Color (Other white, red, blue, yellow, and orange optional)

Plate Color

White (Other green, red, blue, yellow, optional)

Installation Mode

THT (Optional SMT)

Rating

12 VDC, 50 mA

Contact Resistance

100mΩ MAX

Insulation Resistance

100 MΩ MIN.

Breakdown Voltage

250 V AC – 1 MINUTE .

Operating Force

250 ± 50gf

Total Travel

0.4±0.15mm

Operating Temperature

-20℃~70℃

Life Cycle

500,000 Cycle
