Single products

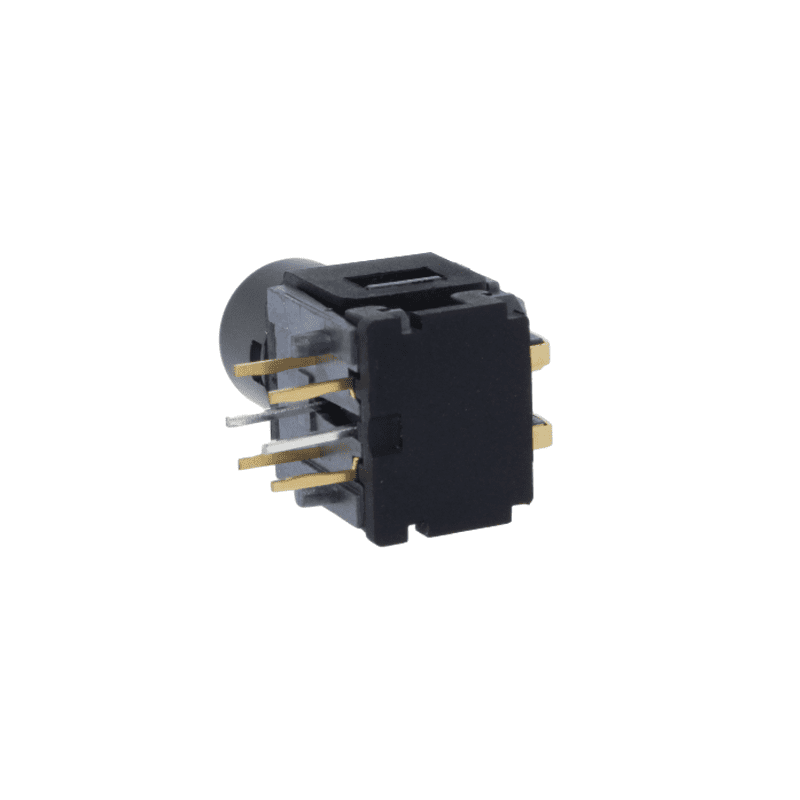

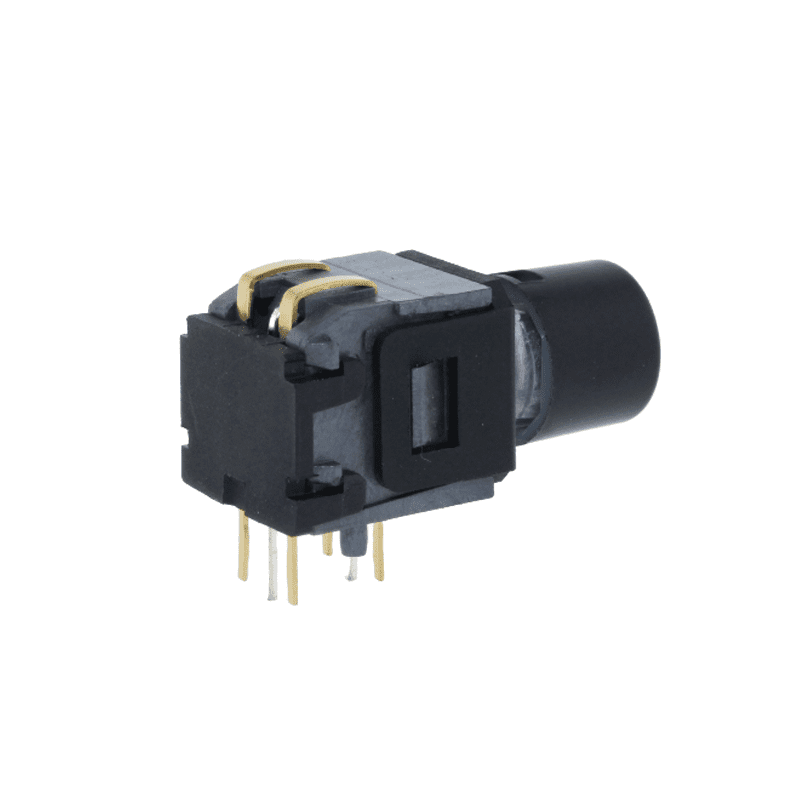

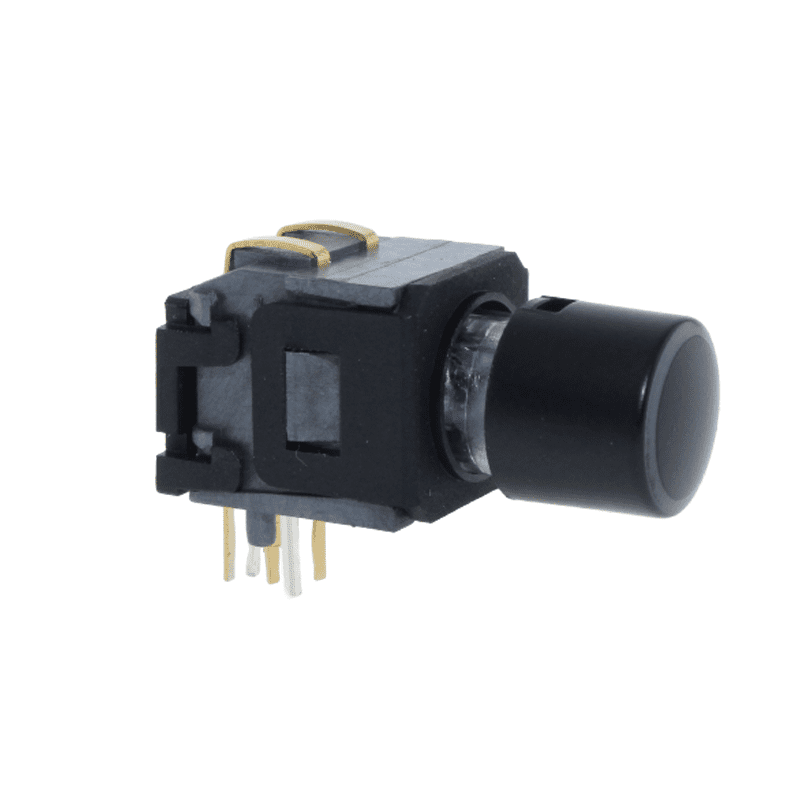

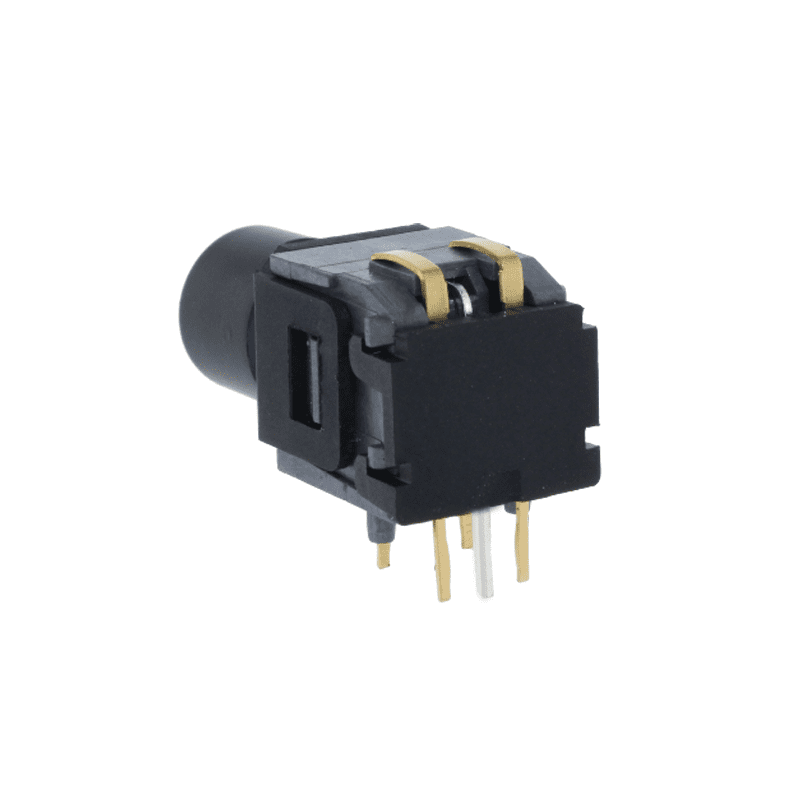

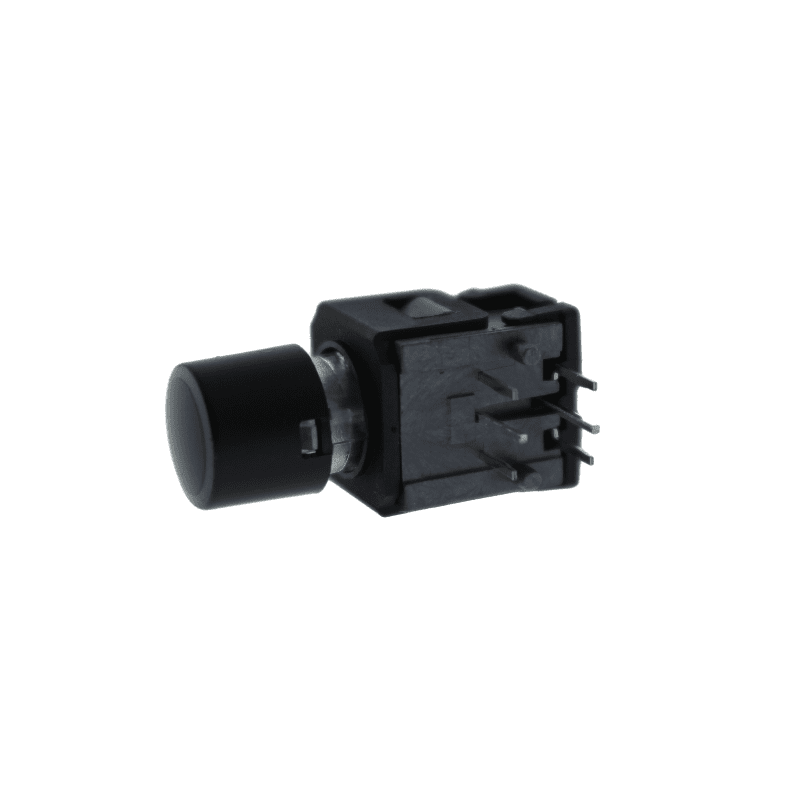

TL6-N1BBN-DTR3W-WK01

Cap size

Ø8mm

Cap Color

Black

Button height

10.3mm

LED Color

Blue (Available in white, green, yellow, orange and Bi-color.)

Rating

POWER MIN/MAX : 0.02VA/ 1.0VA;
CURRENT(0.1 mA ~100 mA );
VOLTAGE ( 20mV DC~32V DC).

Pole Position

1P2T

Contact Resistance

250Ω MAX

Insulation Resistance

500V DC. 100M Ω MIN

Operating Force

400 ± 150gf

Total Travel

1±0.25 mm

Operating Temperature

-40℃~80℃

Life Cycle

2,000,000 Cycles
