Single products

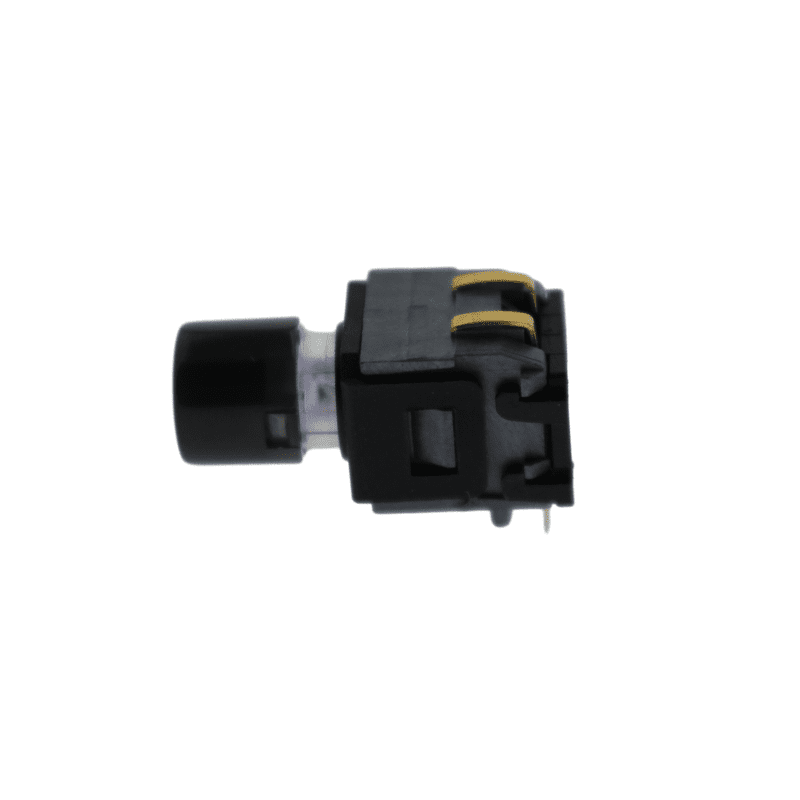

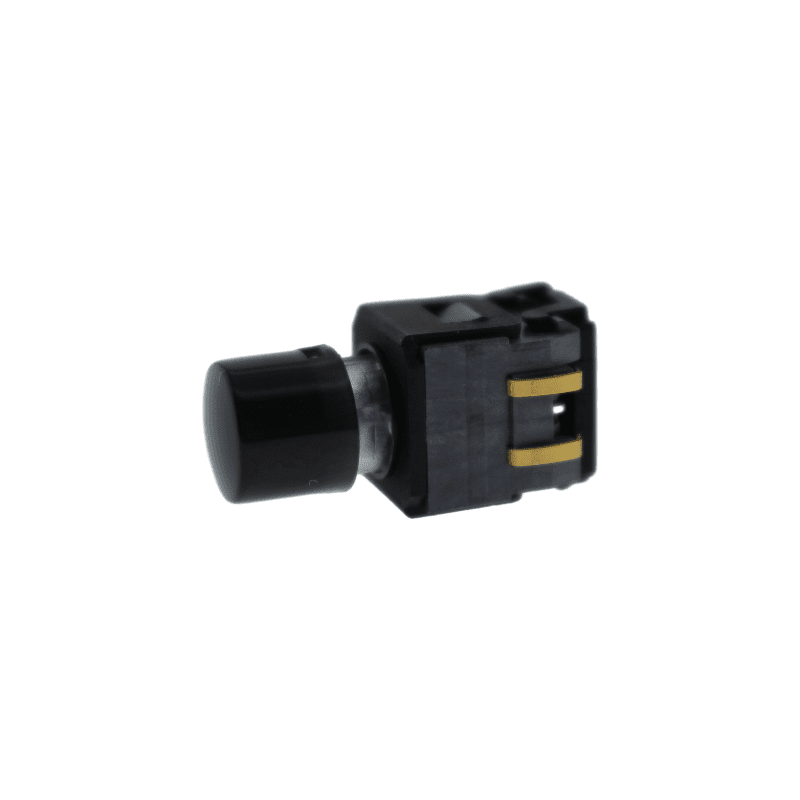

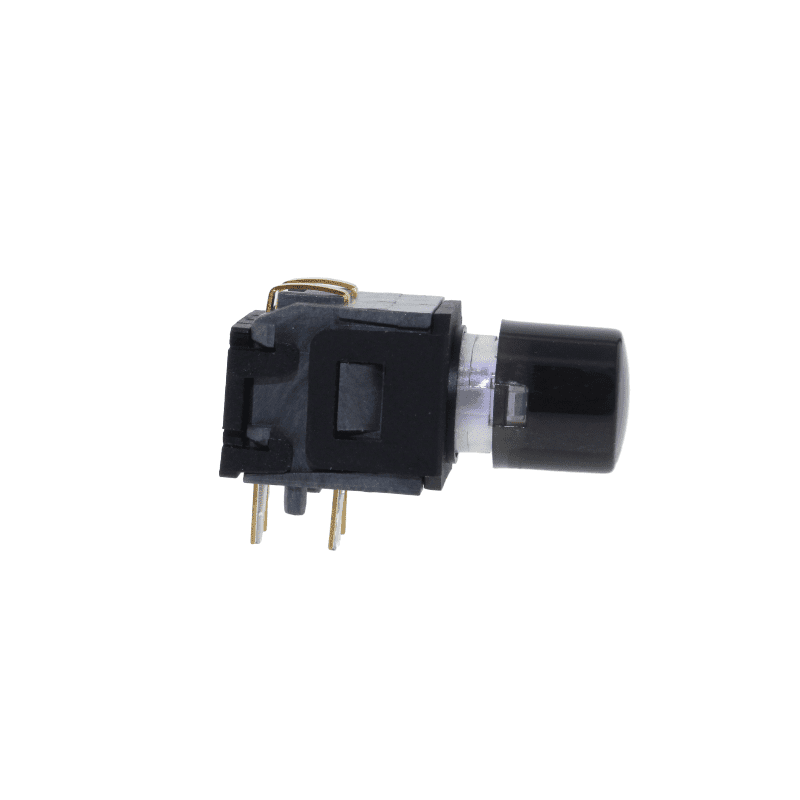

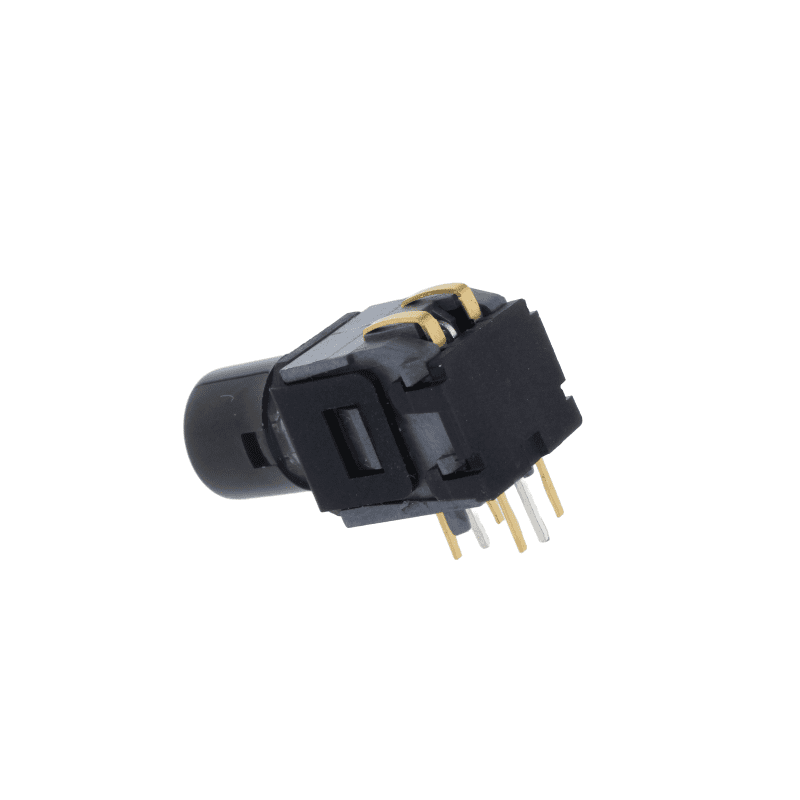

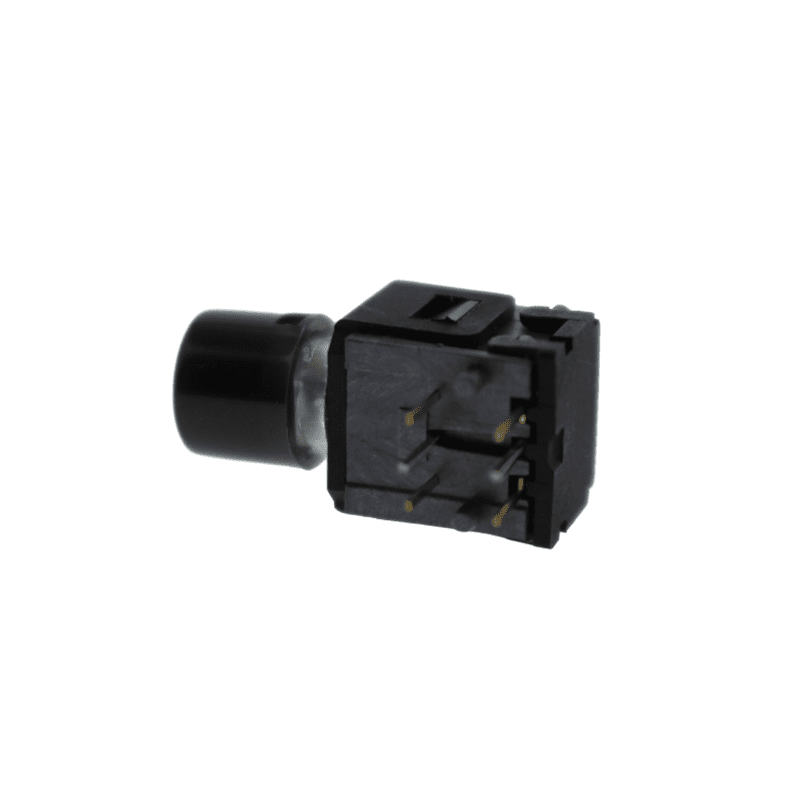

TL6-N1BBN-DTR3KT

Cap size	Ø8mm
Cap Color	Transparent Black
Button height	10.3mm
LED Color	Blue (Available in white, green, yellow, orange and Bi-color.)
Rating	POWER MIN/MAX : 0.02VA/ 1.0VA; CURRENT(0.1 mA ~100 mA ); VOLTAGE ( 20mV DC~32V DC).
Pole Position	1P2T
Contact Resistance	250Ω MAX
Insulation Resistance	500V DC. 100M Ω MIN
Operating Force	400 ± 150gf
Total Travel	1±0.25 mm
Operating Temperature	-40℃~80℃
Life Cycle	2,000,000 Cycles
