Single products

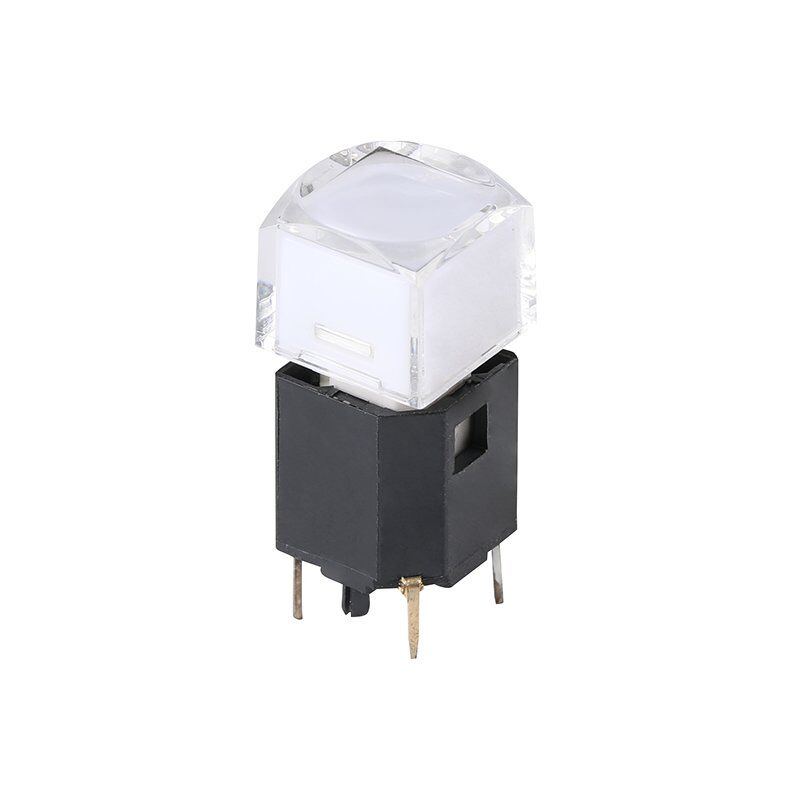

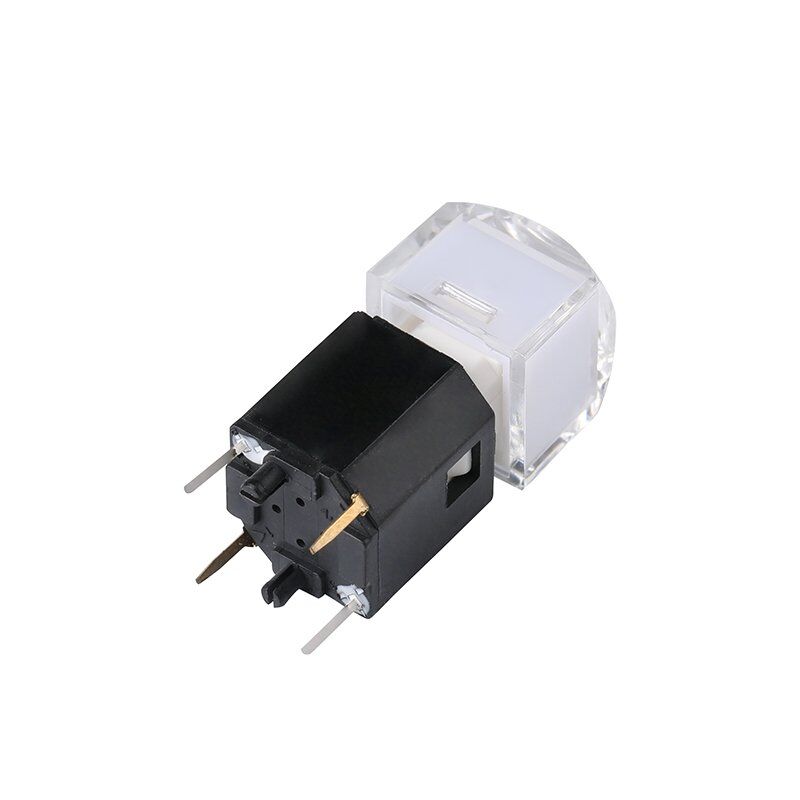

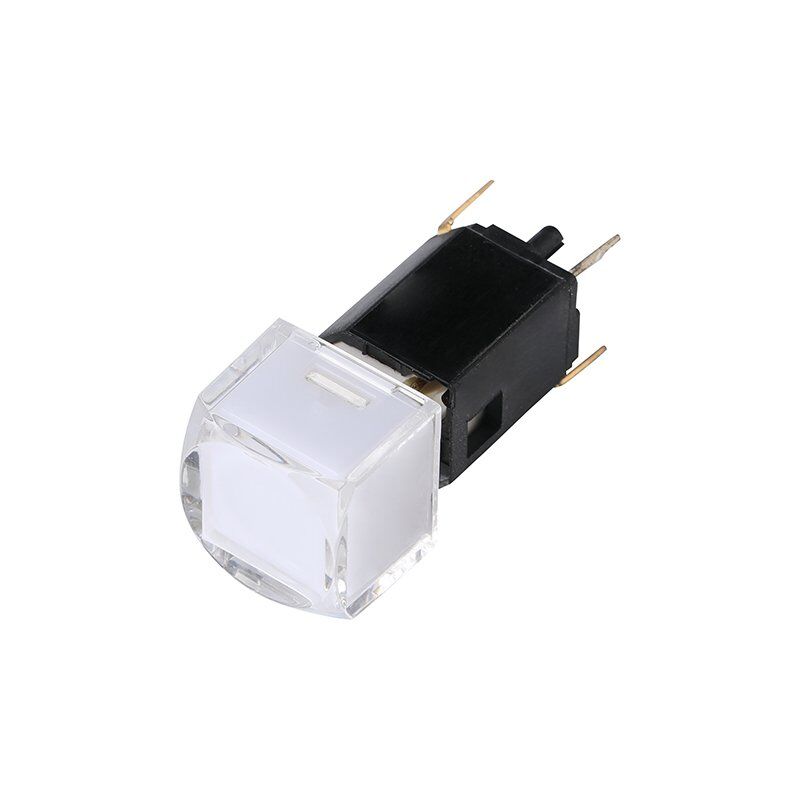

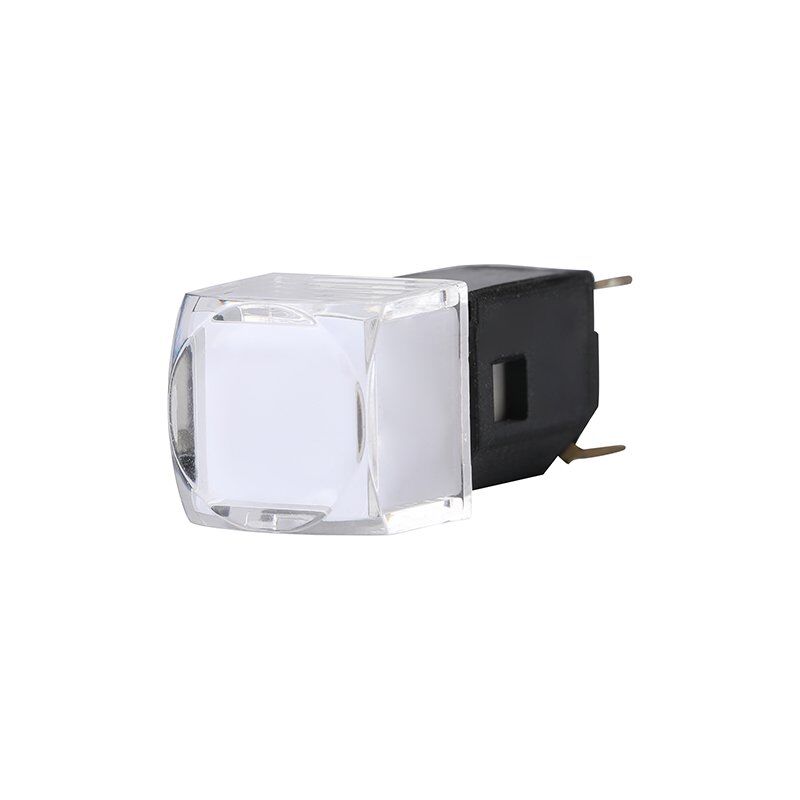

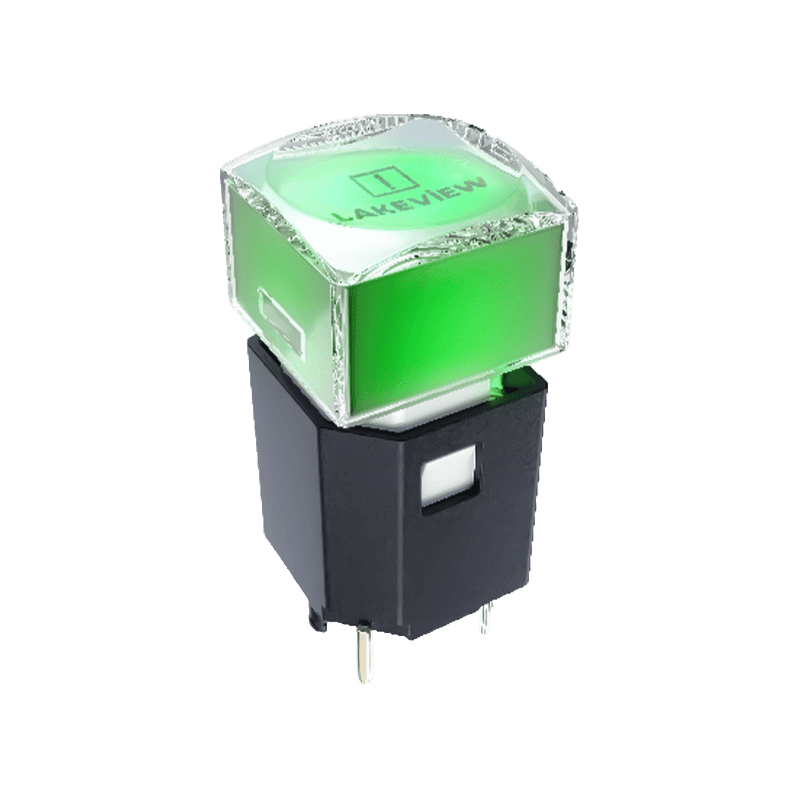

TL3‑N1CBRG‑ADT‑AI

VIEW DRAWINGS

Cap size

11*11mm

Button height

23mm

LED Color

WS2812 LED; Over 16 million colors to choose from

Rating

30 VDC/100 mA [MAX] ;5 VDC/1 mA [MIN].

Contact Resistance

180Ω MAX

Insulation Resistance

100 V DC – 100 MΩ MIN.

Withstand Voltage

250 V AC – 1 MINUTE .

Operating Temperature

-20℃~70℃

Operating Force

125 ± 50gf

Life Cycle

500,000 Cycles
