Single products

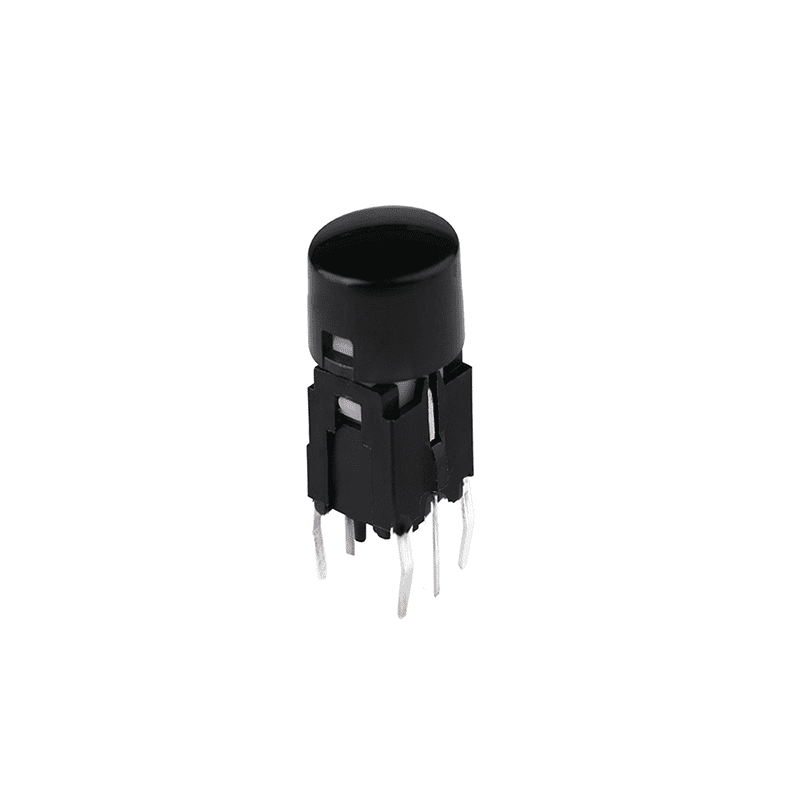

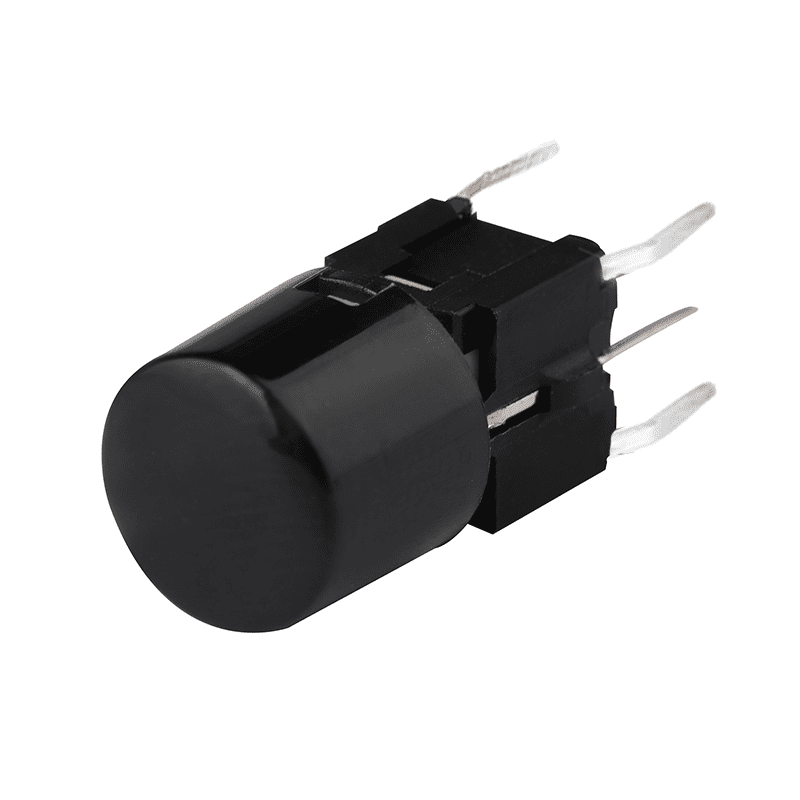

TL2-NNR8KT-R1G1

Cap size	Ø8mm
Cap Color	Transparent Black (Milky white is available)
Button height	14mm
LED Color	Red & Green Bi-color (Other green, white, red, blue, yellow, and orange optional)
Rating	12 VDC, 50mA
Contact Resistance	100mΩ MAX
Insulation Resistance	100 MΩ MIN.
Breakdown Voltage	500 V DC – 1 MINUTE.
Operating Force	250 ± 80gf
Total Travel	1.0±0.4mm
Operating Temperature	-20℃~70℃
Life Cycle	500,000 Cycles
