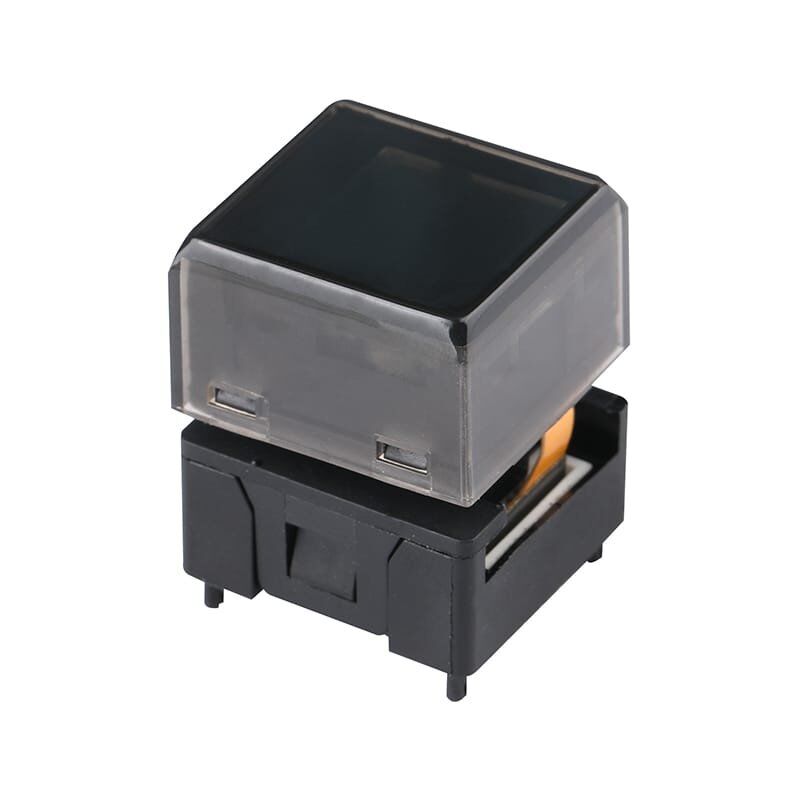

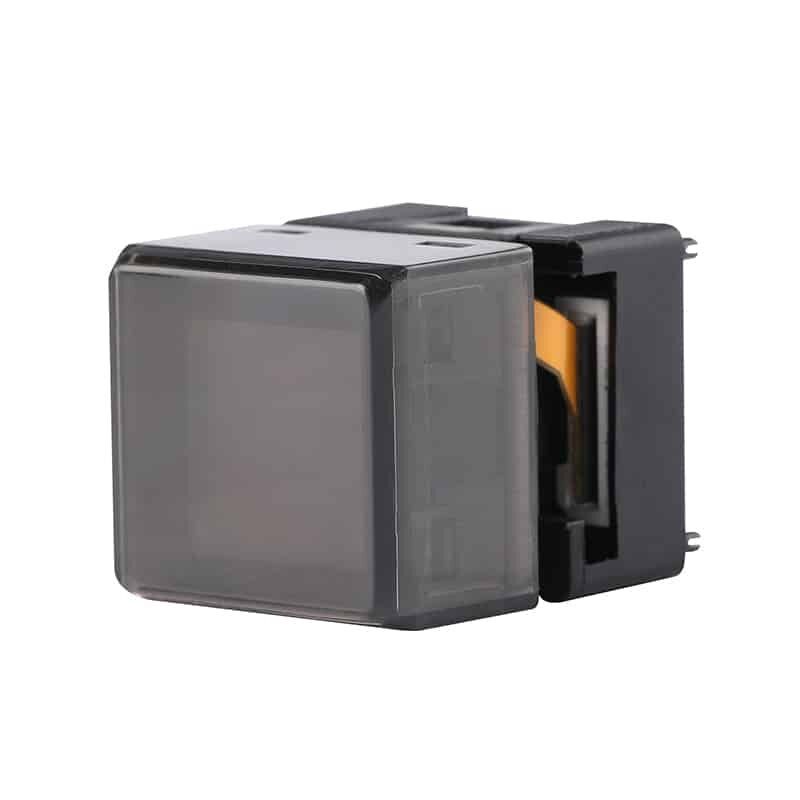

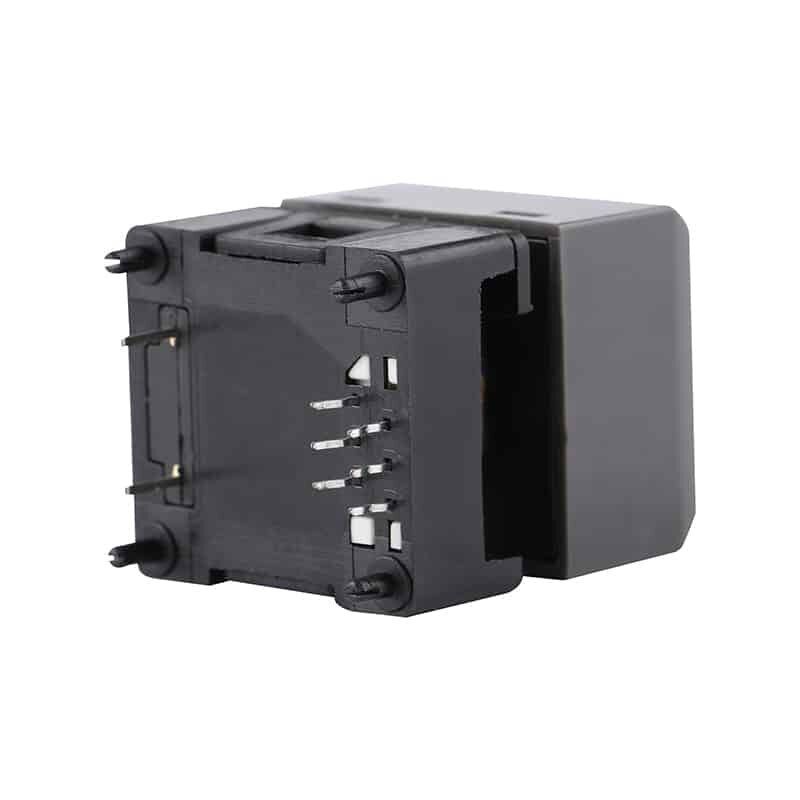

| Product Model | DSP-N1TFO-CKTF |
|---|---|
| Rating: | 12 V DC,0.1A |
| Contact Resistance | 200 mΩ MAX .(Initial) |
| Insulation Resistance | 100 MΩ MIN(DC 250V) |
| Withstand Voltage | AC 125 V / 1 MINUTE |
| Operating Temperature | -25℃~70℃ |
| Operating Force | 80±50 gf |
| Full Travel | 1.8±0.3mm |
| Life Cycle | 2,000,000 Cycles |
| Display Color | 65,536 Colors(Maximum) |
| Drive Duty | 1/64 Duty |
| Pixel Format | 64(Horizontal)X64(Vertical) |
