Quick Answer

An LCD display push button switch combines a mechanical pushbutton with a small programmable display, allowing one physical key to show dynamic labels, icons, menus or device status. For broadcast control panels, audio mixers, video switchers, industrial HMIs and electronic music equipment, the right choice depends on six factors: display type, resolution, interface, backlight control, mechanical life, and customization support.

For most projects, a LCD pushbutton is a practical choice when the button needs text, icons and status labels. A TFT display pushbutton is better when the user interface requires full-color graphics, logos, animations or richer visual feedback. An OLED pushbutton is useful when high contrast, silent operation or compact display size matters. If the button does not need to show text or graphics, an RGB illuminated pushbutton may be more cost-effective than a true display switch.

What Is an LCD Display Push Button Switch?

An LCD display push button switch is a programmable switch with an integrated LCD module inside the button cap. Instead of printing a fixed legend on the cap, engineers can update the button label through software. This makes it possible to use one panel layout for multiple modes, languages, workflows or product variants.

These switches are especially valuable when panel space is limited. A video switcher, audio console or industrial controller may need dozens of functions, but the operator only needs to see the active commands for the current mode. A programmable display button solves that problem by turning each button into a small, dynamic interface.

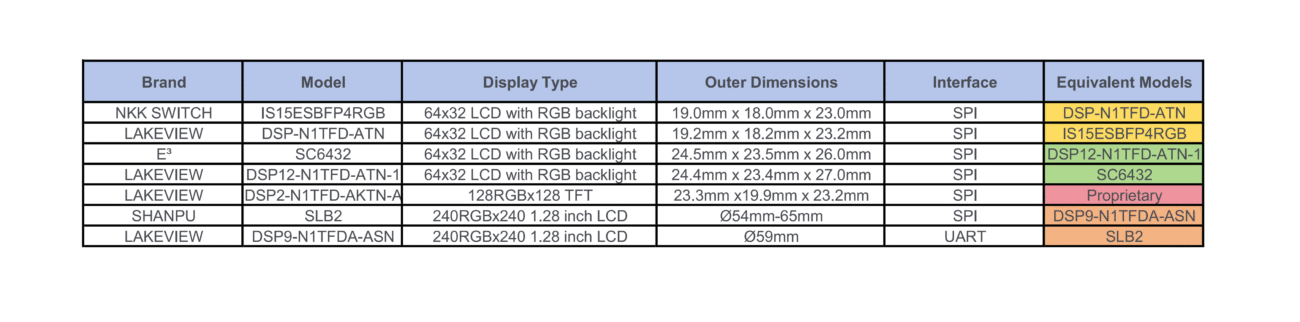

Market Comparison at a Glance

The following comparison focuses on publicly available product information. Always confirm final specifications, pinout, lifetime, firmware requirements and mechanical fit with the latest datasheet before designing a PCB or replacing an existing switch.

Key Buying Criteria

1. Display Technology: LCD and TFT

Choose a 64×32 LCD pushbutton when the button needs clear text, symbols and status icons. This is common in broadcast switchers, rack controllers and audio products where the same key may represent different functions in different modes.

Choose a TFT display pushbutton when the interface needs full-color graphics, logos, thumbnails, meters or richer visual states. Lakeview’s DSP2 Series, for example, is positioned around a 128×128 TFT screen programmable via SPI.

2. Resolution and Readability

Resolution is not just a number. A 64×32 LCD can be enough for short labels, arrows, numbers and simple icons. A 128×128 TFT can support much more detailed visual content.

Before choosing a switch, test the actual label size, viewing angle, font, icon style and backlight level in the expected lighting environment.

3. Interface and Firmware Workload

Most programmable display buttons require the host PCB and firmware to control display content. SPI is common for LCD and TFT display switches, while some OLED pushbuttons use I2C.

For a low-risk design-in, ask these questions:

• Does the supplier provide a datasheet, command set and sample code?
• Is there an evaluation board or controller?
• Can multiple buttons be controlled efficiently on one PCB?
• What display update speed is required?
• How many pins and terminals are needed?
• Is the switch compatible with the existing panel, socket or PCB footprint?

4. Mechanical Feel and Lifetime

Display buttons are not only screens; they are switches that operators press repeatedly. For broadcast, stage, DJ, pro-audio and industrial control products, tactile feel and lifetime matter.

5. Customization and OEM Support

For OEM buyers, customization is often more important than a single datasheet value. A standard part may work for a prototype, but production products often need custom cap height, legend style, actuator feel, connector, PCB footprint, color behavior, packaging or firmware guidance.

Lakeview is especially relevant for OEM teams looking for LCD/OLED display buttons, RGB LED pushbuttons and custom switch solutions for broadcast, AV and electronic music equipment. Direct manufacturer support can also help when a project needs lower MOQ discussions, engineering changes or a dedicated sample process.

6. Replacement Risk: Do Not Compare by Resolution Only

Many engineers search for terms such as “NKK IS15 alternative” or “E3 SB6432 replacement.” This is understandable, especially when a product is hard to source or a design needs a lower-cost or customized option. However, resolution alone does not make two switches interchangeable.

Before replacing any LCD keyswitch, compare:

• Outer dimensions and panel cutout
• PCB footprint and pinout
• Operating voltage and current
• Contact rating
• Display protocol and command set
• Backlight control method
• Viewing area and active area
• Key travel and operating force
• Socket, cap and mounting structure
• Firmware changes required

A good alternative should be selected by both mechanical fit and electrical compatibility, not by product name alone.

Recommended Choices by Application

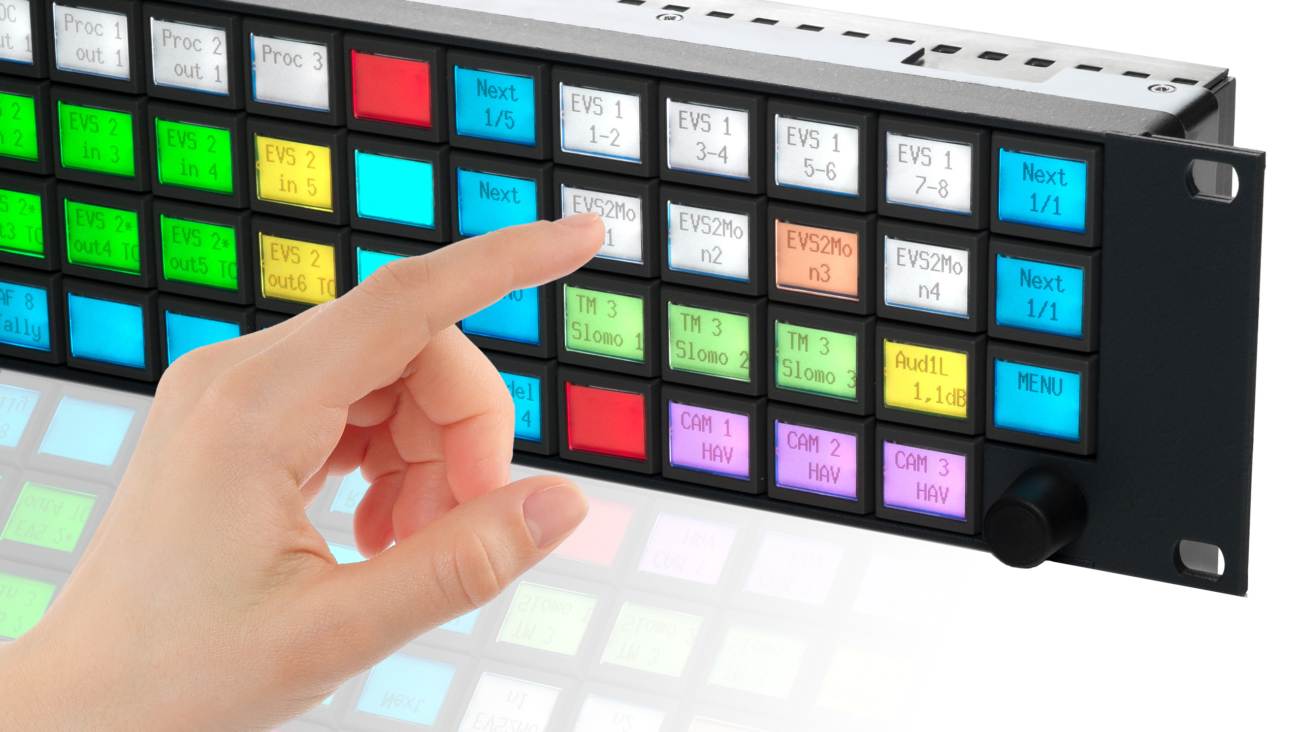

For broadcast control panels: choose a 64×32 LCD pushbutton or a full-color TFT pushbutton if the operator needs changing labels, source names, tally status or mode-specific commands.

For audio mixers and electronic music equipment: choose compact LCD, OLED or RGB illuminated pushbuttons depending on how much information the key must display. Silent or smooth tactile feel may be important in studio environments.

For industrial HMIs: prioritize readability, mechanical life, IP rating, stable supply and clear documentation. A display rotary encoder may be useful for menu navigation.

For cost-sensitive panels: use RGB LED pushbuttons when the button only needs color status. Use true LCD/OLED/TFT display pushbuttons only where dynamic labels or graphics add real user value.

For replacement projects: start with the original datasheet, then request a side-by-side compatibility review from the new supplier. Do not rely on online photos or resolution claims alone.

Lakeview Positioning

Lakeview focuses on display button switches and LED push button switches for OEM control panels. Its product range includes 64×32 LCD display pushbuttons, 128×128 TFT programmable momentary pushbuttons and RGB illuminated pushbutton switch series. For customers building broadcast equipment, audio/video products, instrumentation, telecommunications devices or electronic music hardware, Lakeview can be positioned as a flexible manufacturer for display buttons and customized illuminated switches.

If your project is comparing NKK, E3, RJS, SHANPU, E-Switch, Well Buying and Lakeview, the most important question is not “Which brand is best?” The better question is: “Which switch gives our product the right display, feel, firmware workload, mechanical fit, customization support and long-term supply?”

FAQ

What is the difference between an LCD pushbutton and an RGB LED pushbutton?

An LCD pushbutton has a programmable screen inside the button, so it can show text, icons or changing labels. An RGB LED pushbutton does not display graphics; it uses colored light to show status. If you only need red, green, blue or custom color feedback, an RGB LED button may be enough. If you need dynamic labels, choose an LCD, OLED or TFT display pushbutton.

Is a 64×32 LCD display enough for a control panel?

Yes, for many control panels. A 64×32 LCD can show short labels, icons, numbers and status symbols. For logos, images, detailed graphics or richer UI states, a 128×128 TFT display button may be a better choice.

Can Lakeview display buttons replace NKK or E3 switches?

In some projects, Lakeview display buttons may be considered as an alternative, but replacement must be checked carefully. Compare dimensions, pinout, interface, voltage, firmware protocol, cap structure, operating force and mounting method before making any change.

Which interface is common for programmable display pushbuttons?

SPI is common for LCD and TFT display pushbuttons. Some OLED pushbuttons use I2C. Always check the supplier’s latest datasheet and confirm whether sample code or an evaluation board is available.

Are OLED pushbuttons better than LCD pushbuttons?

Not always. OLED can provide strong contrast and compact readability, but LCD pushbuttons are widely used for reliable dynamic labels, and TFT pushbuttons are better for full-color graphics. The right choice depends on the panel environment, display content, lifetime expectations and budget.

What should OEM buyers ask before ordering samples?

Ask for the datasheet, mechanical drawing, pinout, command set, electrical rating, display lifetime, mechanical lifetime, MOQ, lead time, customization options, sample availability and recommended PCB design notes.

Conclusion

If you are designing a new control panel or replacing an existing LCD keyswitch, start with the application: what must the operator see, how often will the button be pressed, how much firmware work is acceptable, and what mechanical constraints must be respected? Once those questions are clear, choosing the right LCD display push button switch becomes much easier.

Trademarks and product names belong to their respective owners. This article is for technical comparison and product selection only. Lakeview is not affiliated with NKK, E3 or SHANPU, unless expressly stated.
