Single products

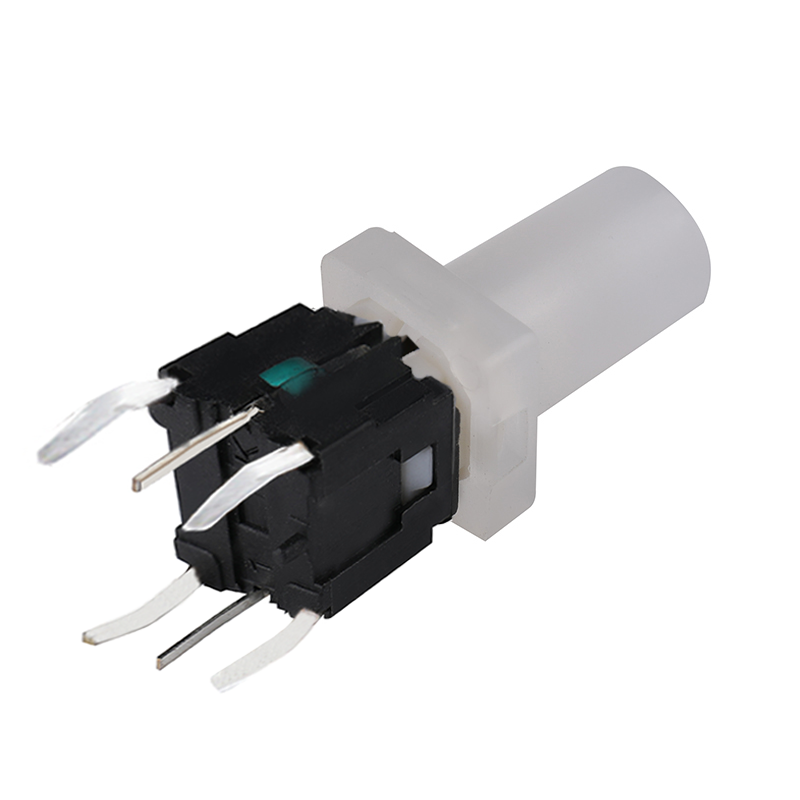

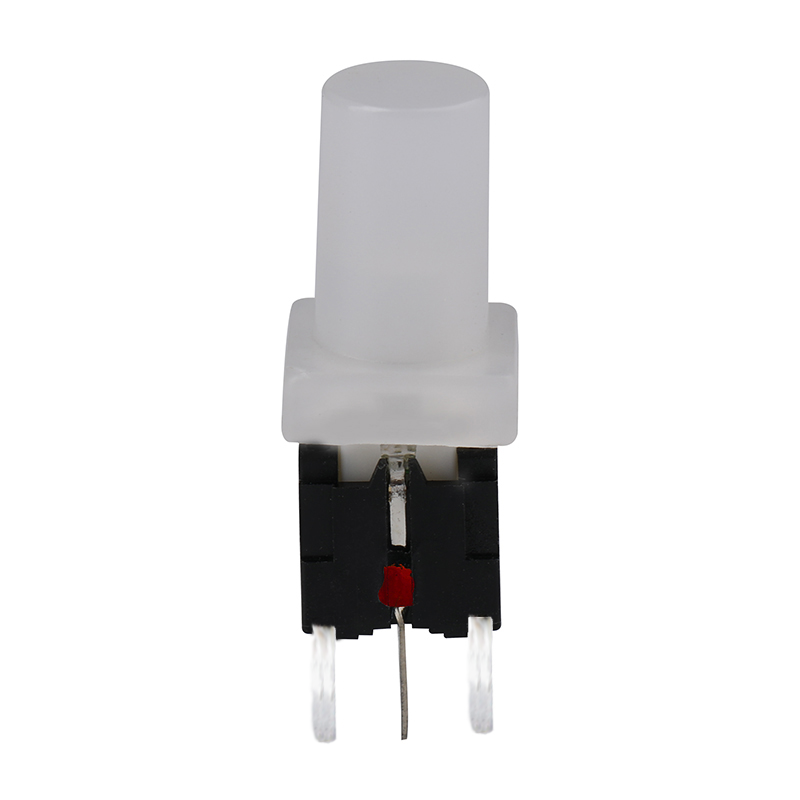

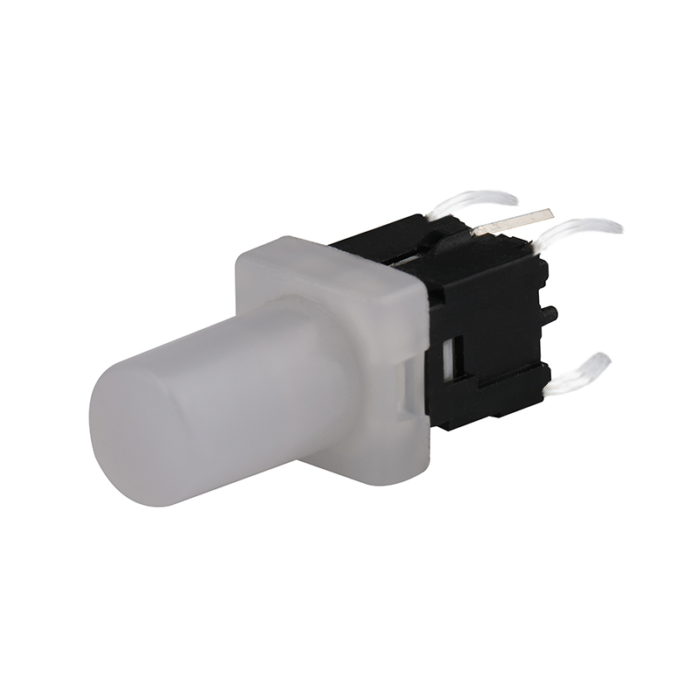

TL2-NNS2W-R1B1

Cap size

Ø5.5mm

Cap Color

Transparent White (Milky Black is available)

Button height

18mm

LED Color

Red & Blue Bi-color (Other green, white, red, blue, yellow, and orange optional)

Rating

12 VDC, 50mA

Contact Resistance

100mΩ MAX

Insulation Resistance

100 MΩ MIN.

Breakdown Voltage

500 V DC – 1 MINUTE.

Operating Force

250 ±
80gf

Total Travel

1.0±0.4mm

Operating Temperature

-20℃~70℃

Life Cycle

500,000 Cycles
