| Cap size | 15*15mm |
|---|---|
| Cap Color | Black (Also available in transparent cap.) |
| Button height | 23.2mm |
| LED Color | RGB LED (Available in white, blue, green, yellow, orange and Bi-color and WS2812 RGB color.) |
| Rating | 12 V DC, 0.1A |
| Contact Resistance | 200 mΩ MAX. (Initial) |
| Insulation Resistance | 100 MΩ MIN (DC 250V) |
| Withstand Voltage | AC 250V/1 MINUTE |
| Operating Temperature | -25℃~70℃ |
| Operating Force | 250±100 gf |
| Full Travel | 4.5±0.3mm |
| Life Cycle | 2,000,000 Cycles |
Single products

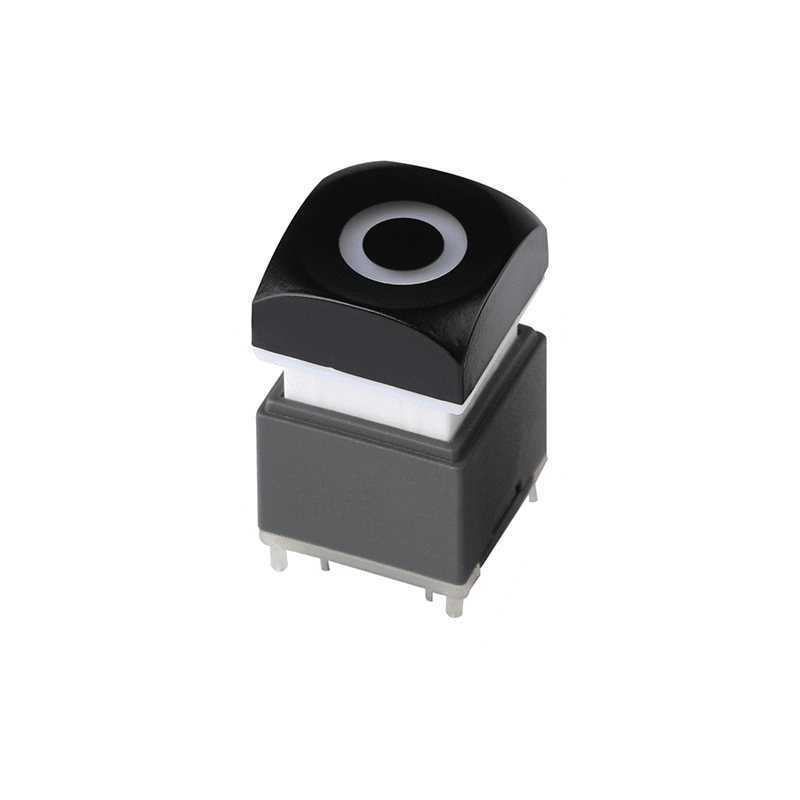

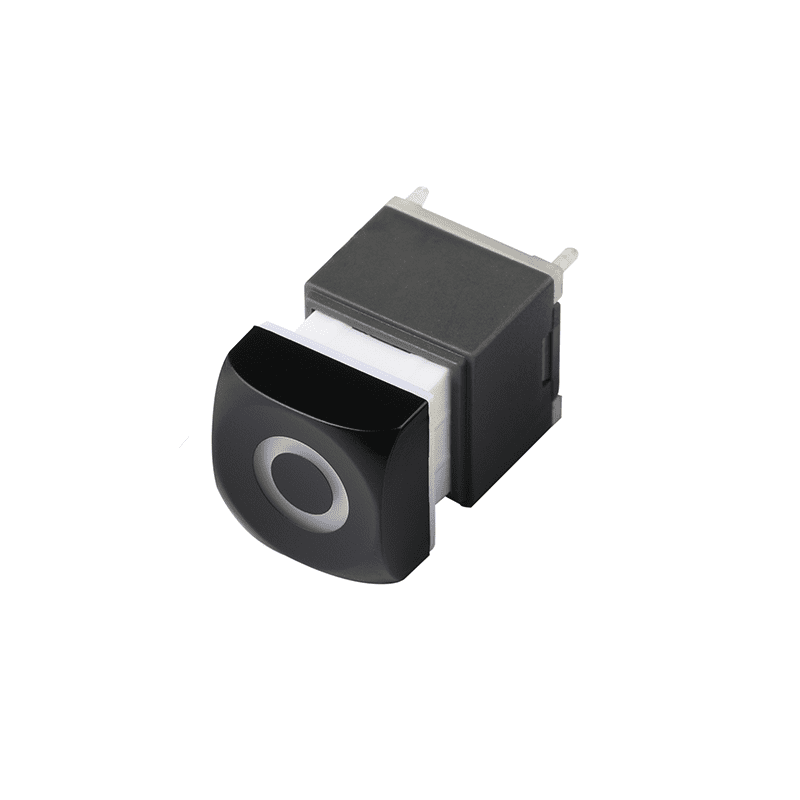

PLC-N1TNF1-BTW
