Single products

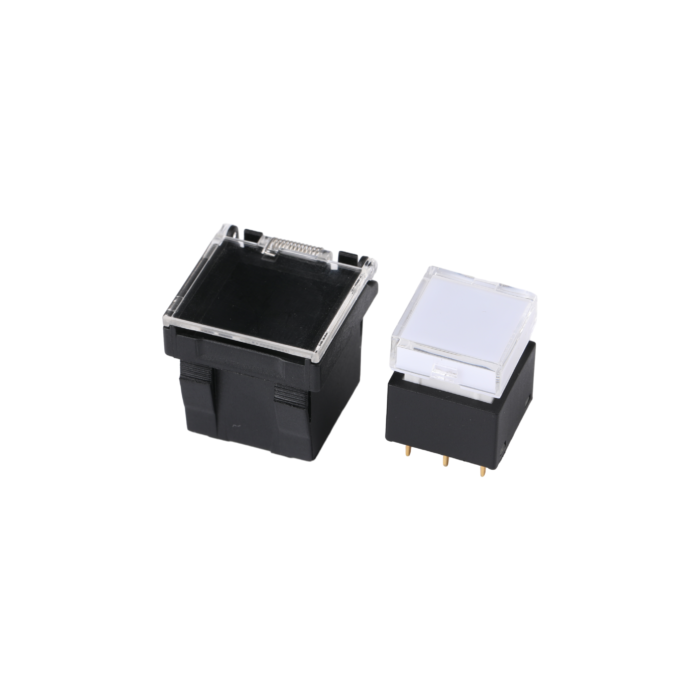

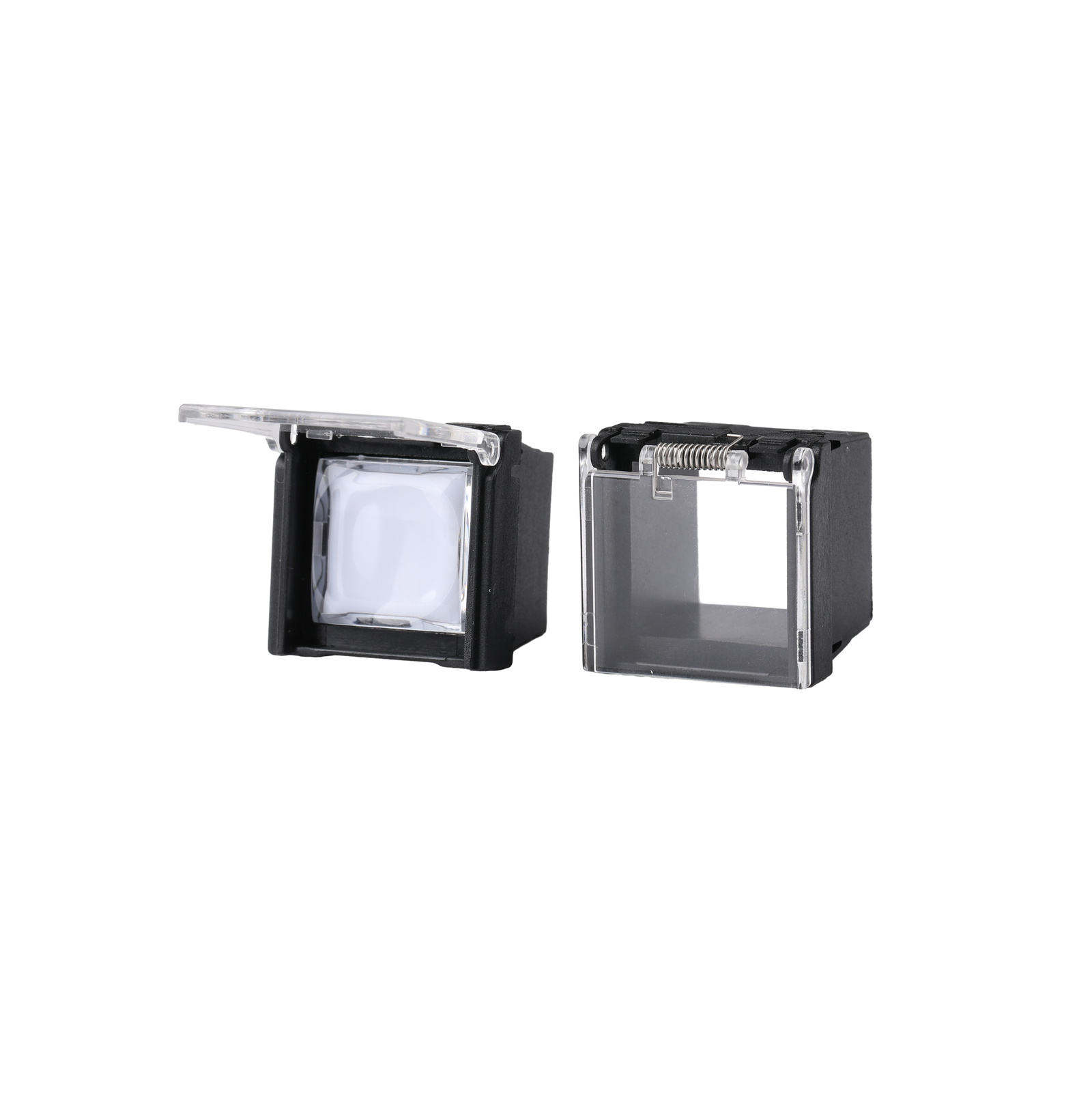

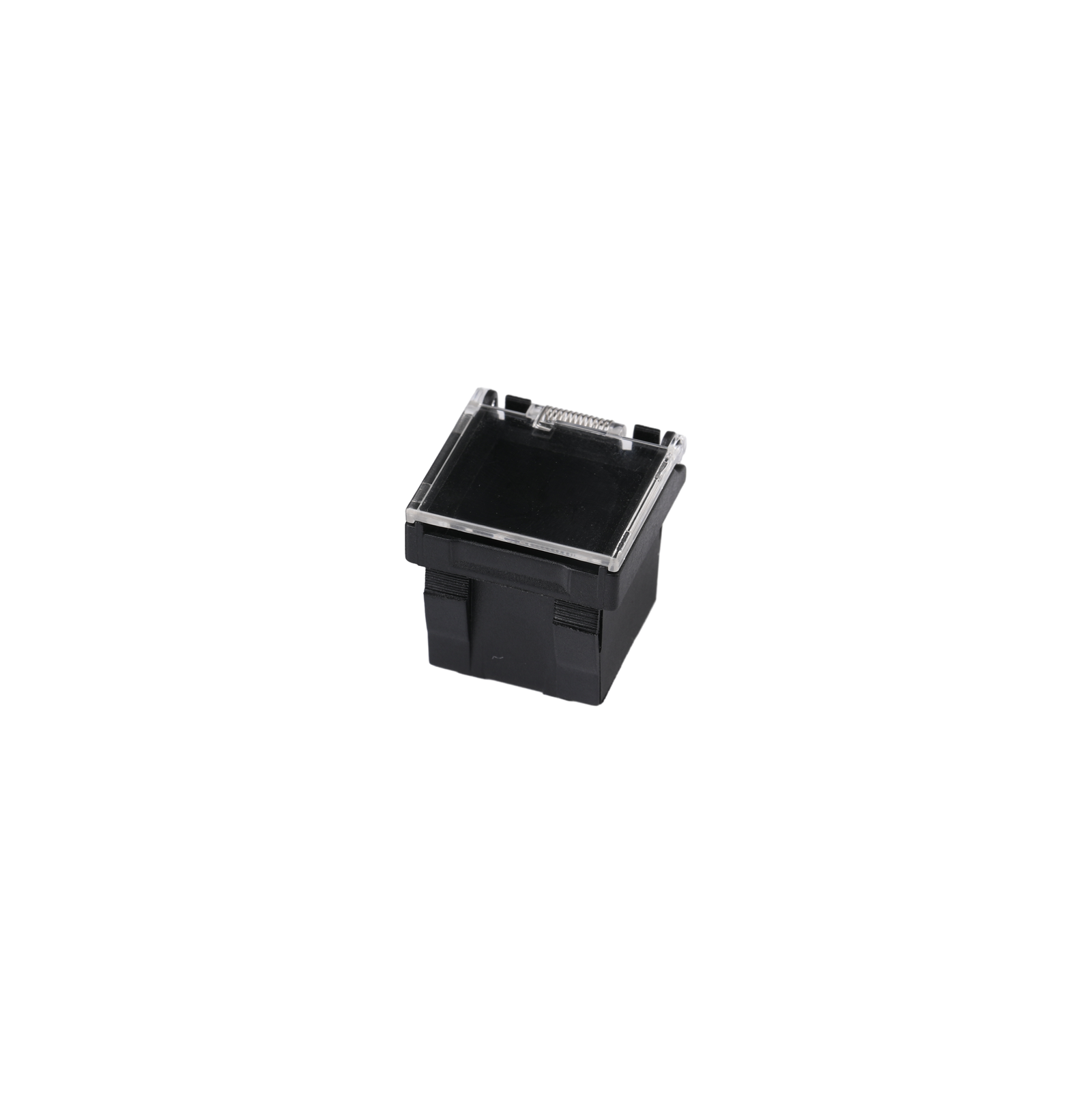

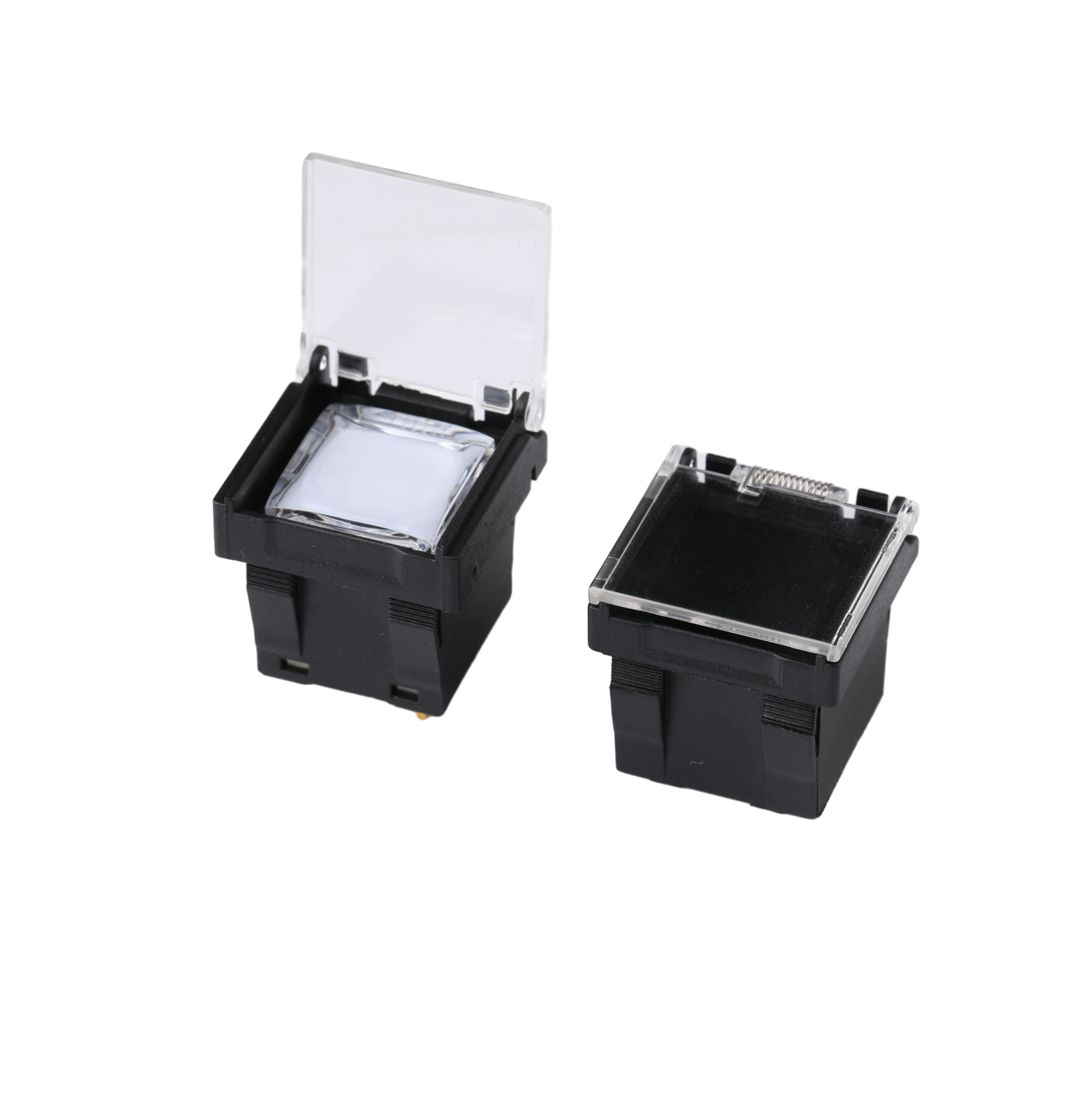

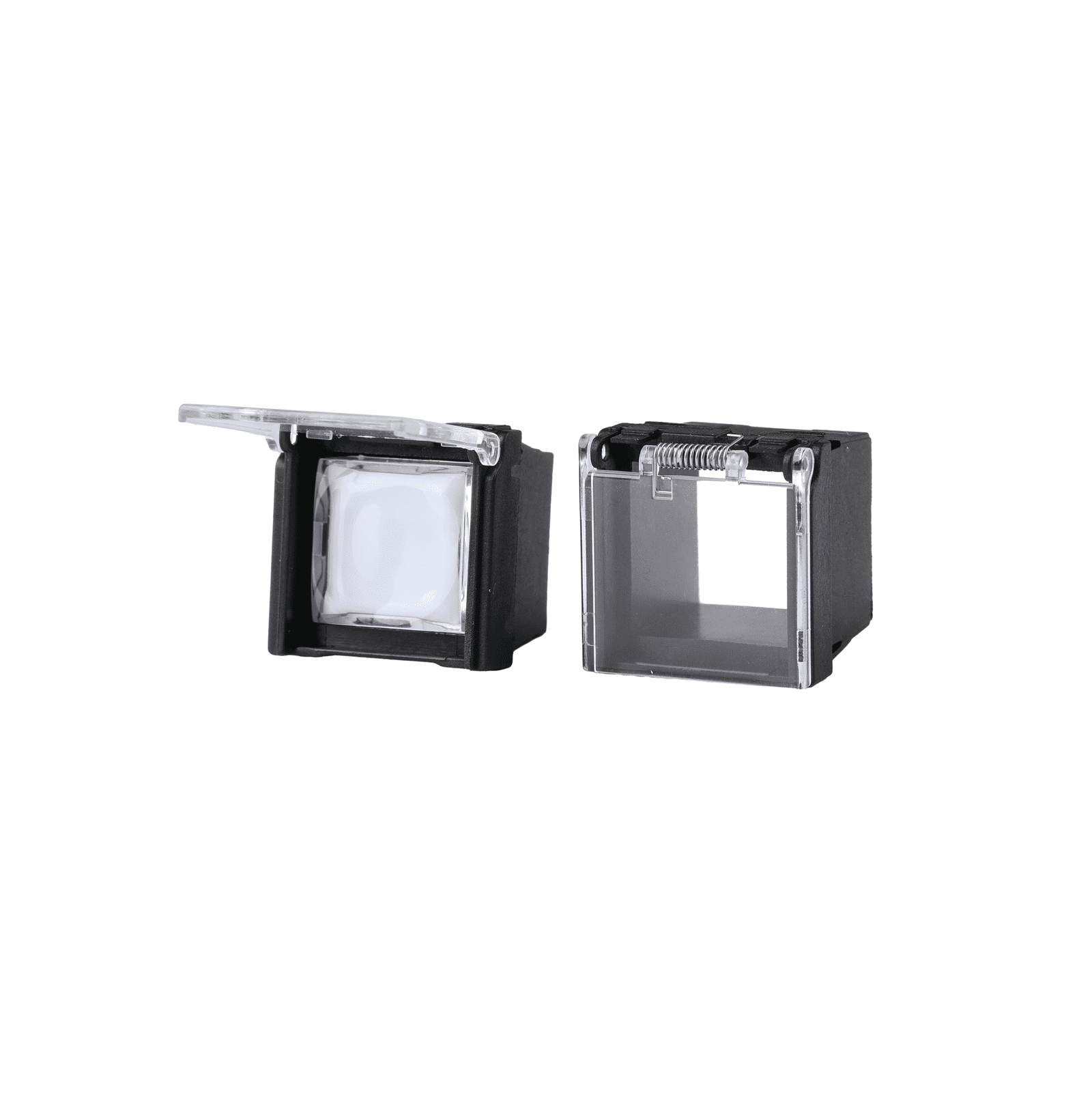

PLB-N1PNR-ATW-P1KT-1

Cap Size

15*15mm

Cap Color

Transparent (Also available in black, red cap.)

Shell Size

21.7*21.85mm

Button Height

21.6mm

LED Color

Red (Available in white, blue, green, yellow, orange and Bi-color and RGB color.)

Rating

28 V DC,0.4A

Contact Resistance

100 mΩ MAX .

Insulation Resistance

DC 500V /100 MΩ,MIN,

Withstand Voltage

AC 500V/1 MINUTE

Operating Temperature

-25℃~70℃

Operating Force

200±100 gf

Life Cycle

2,00,000 Cycles
