Single products

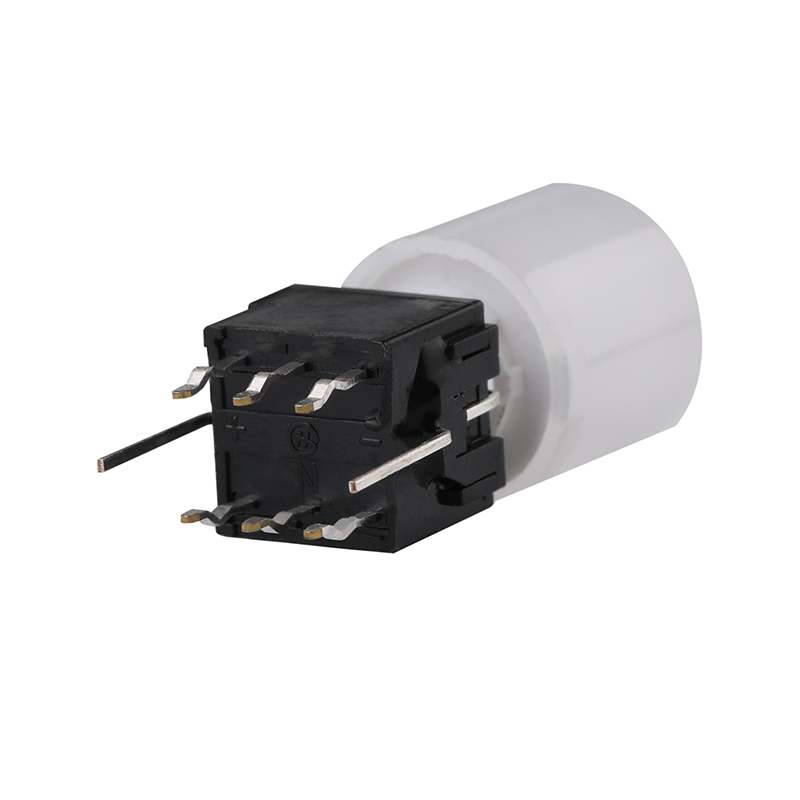

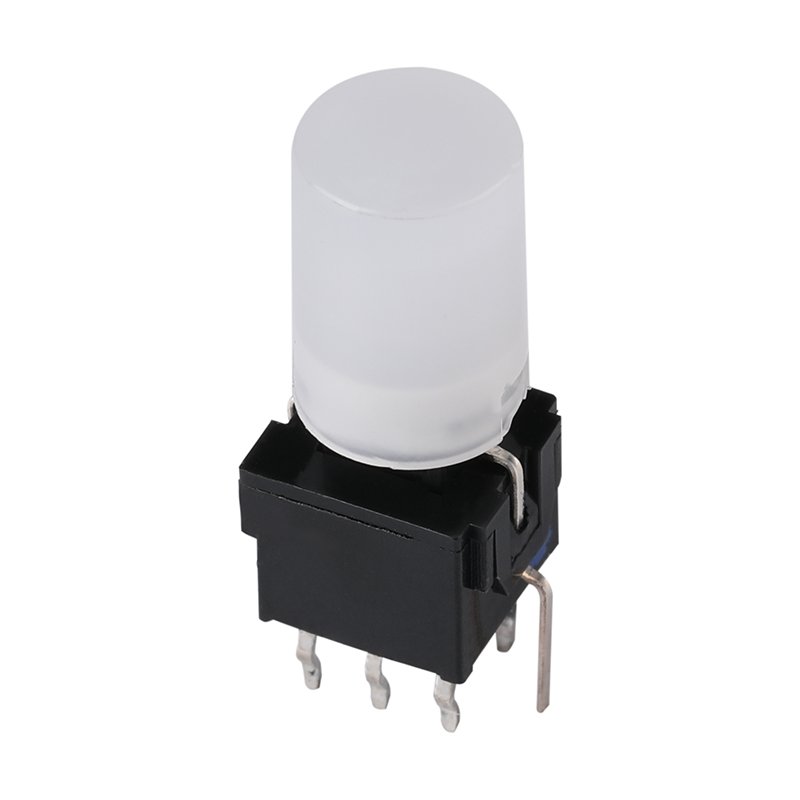

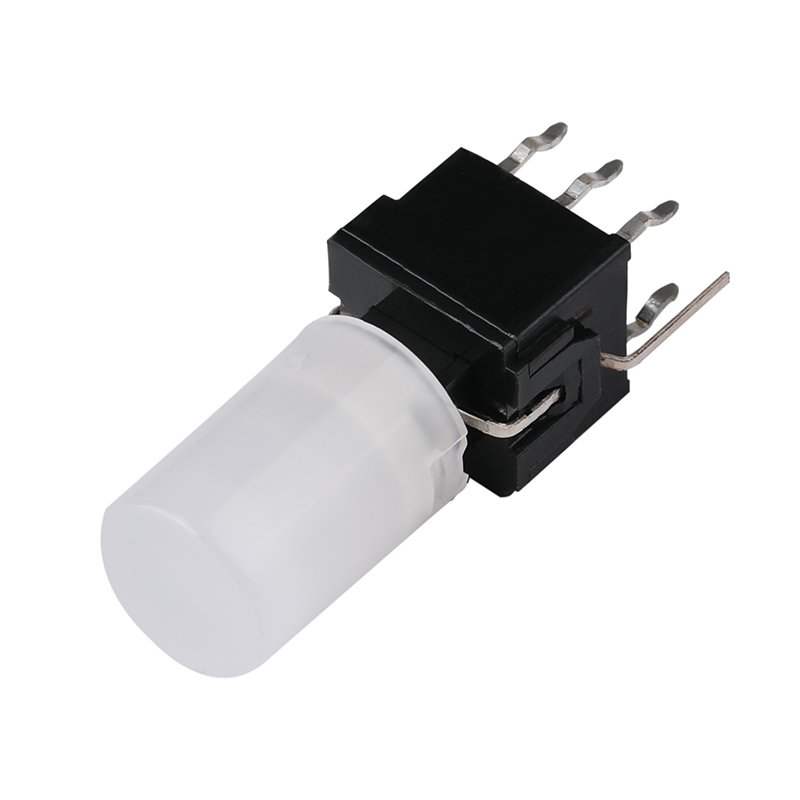

PLA-L2P-Y1NN-R1NW

Cap Size

Ø7.5mm

Cap Color

White (Also available in transparent cap.)

Button Height

19.5mm

LED Color

Yellow (There are also blue, white, red, green, orange, and Bi-color)

Type of Operation

2P2T, Lock Type

Rating

0.1A 30V DC MAX ; 0.1mA 5VDC MIN

Contact Resistance

50 MΩ ,MAX.

Insulation Resistance

250 V DC,100MΩ ,MIN.

Operating Temperature

-20℃~70℃

Operating Force

250±100 gf

Operating Life

50,000 Cycles
